Overview

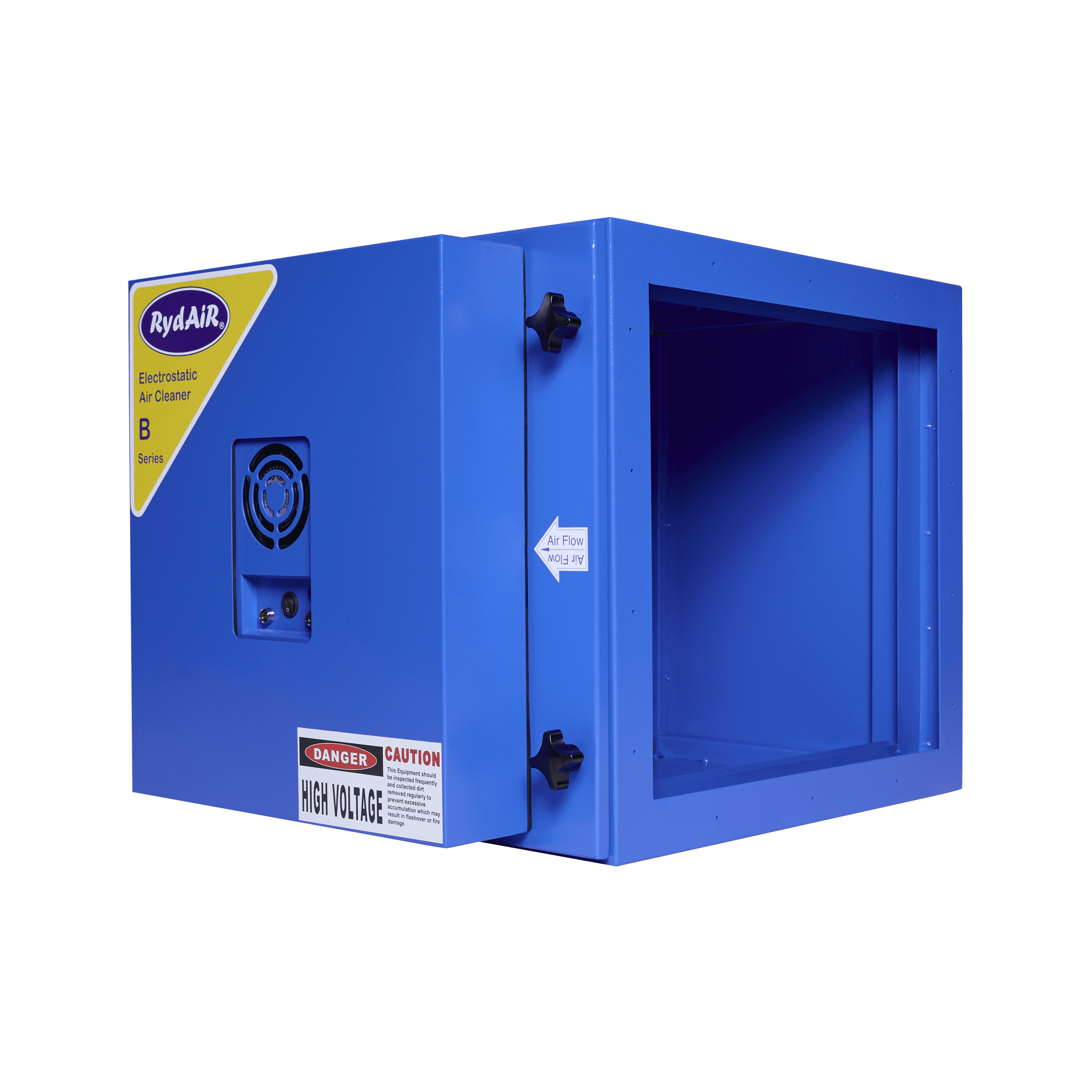

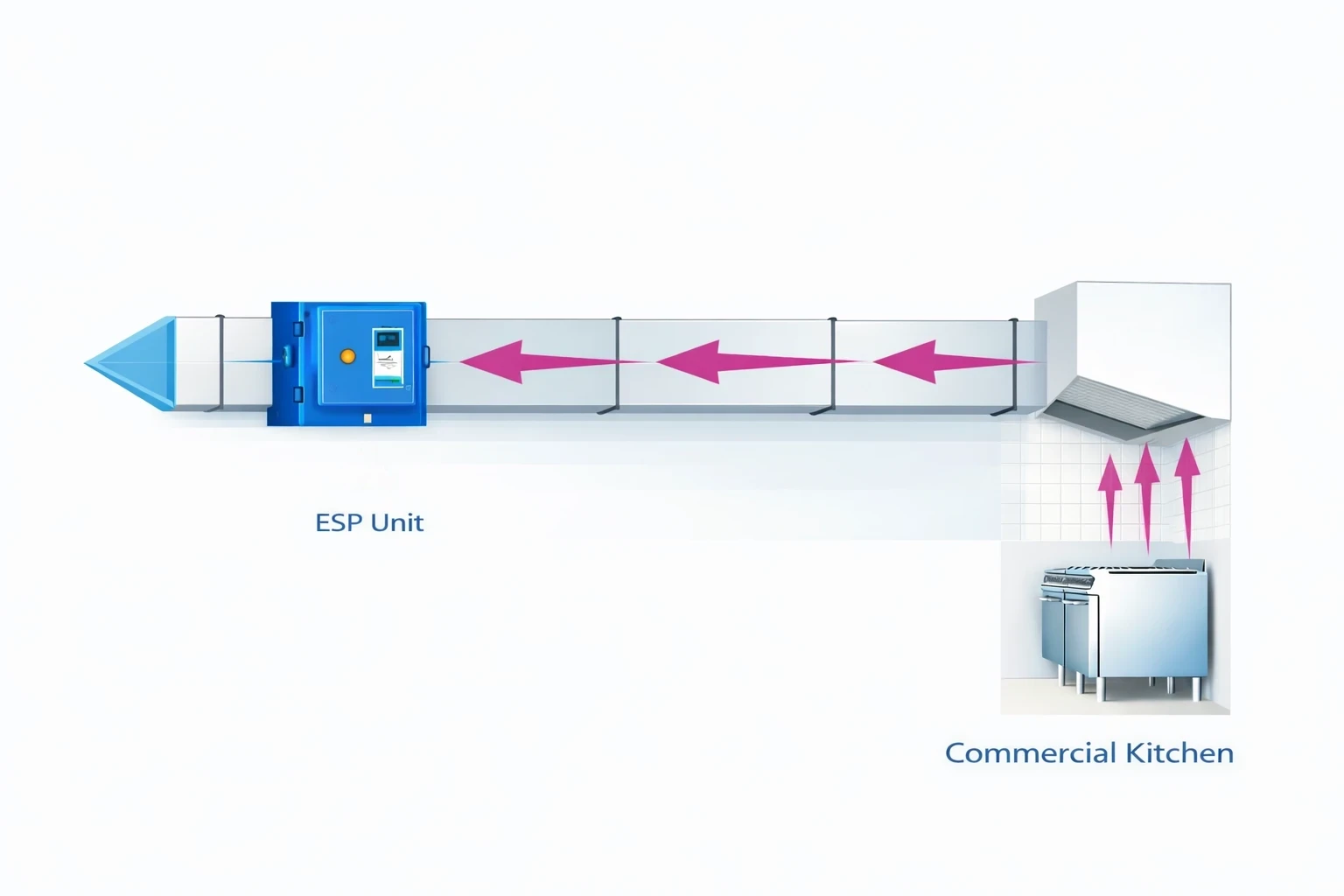

Industrial-grade ESP for grease, smoke and oil mist. Up to ~95% single-pass capture; modular multi-unit banks.
Key Benefits
Specifications
Power | 50 Watts |
Weight | 55kg |
Typical Airflow | 2,500–4,600 CMH (and 1,470–2,700 CFM) |
Efficiency | Up to ~95% (single); up to ~99% (double) |
Particle Size (min) | 0.01 |
Power | ≈50 |
Supply/Voltage | 230 V ±10%, 50/60 Hz |
Dimensions (H×W×L) | 540 × 694 × 620 |
Weight | ≈55 |

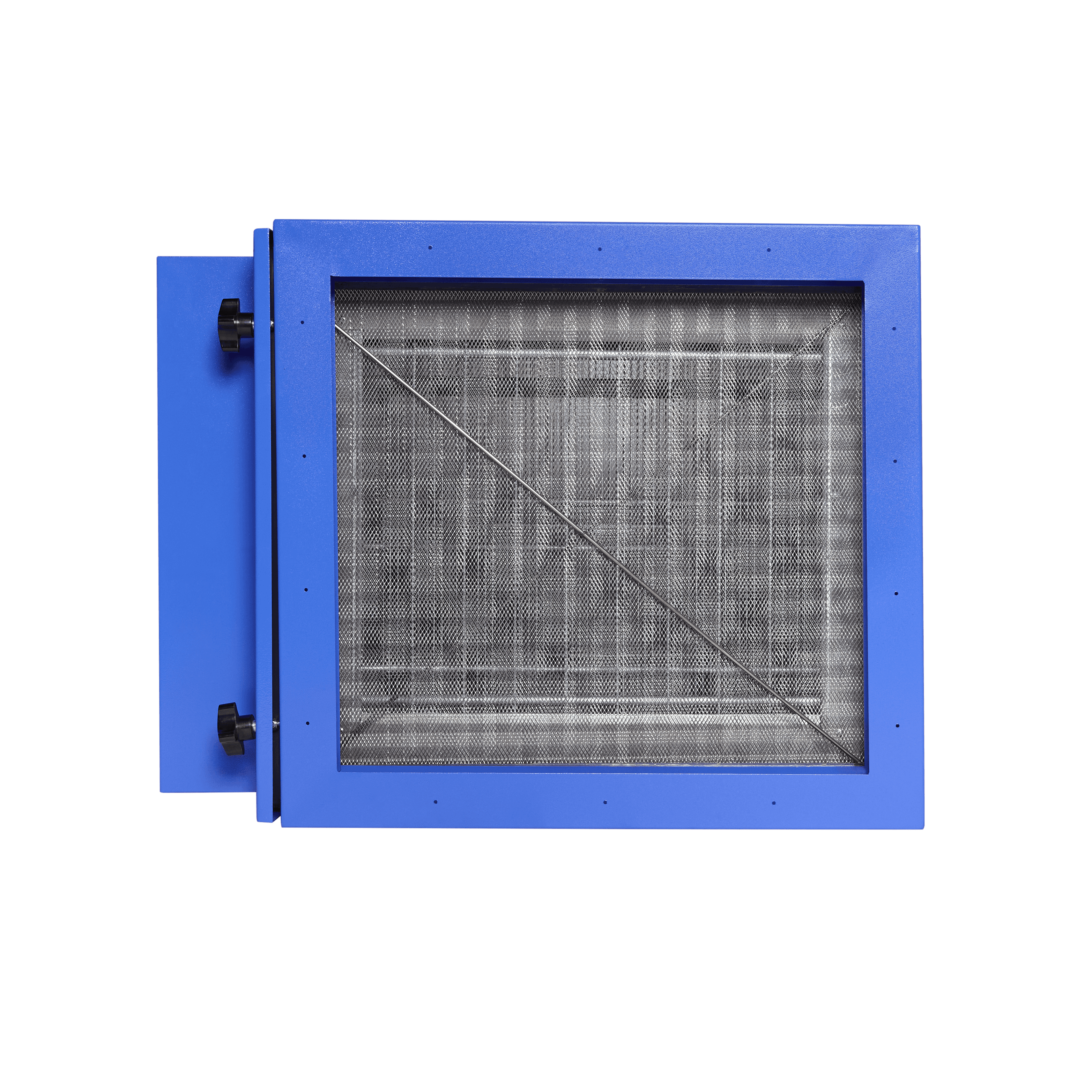

Pre‑filter | Washable stainless/aluminium mesh |

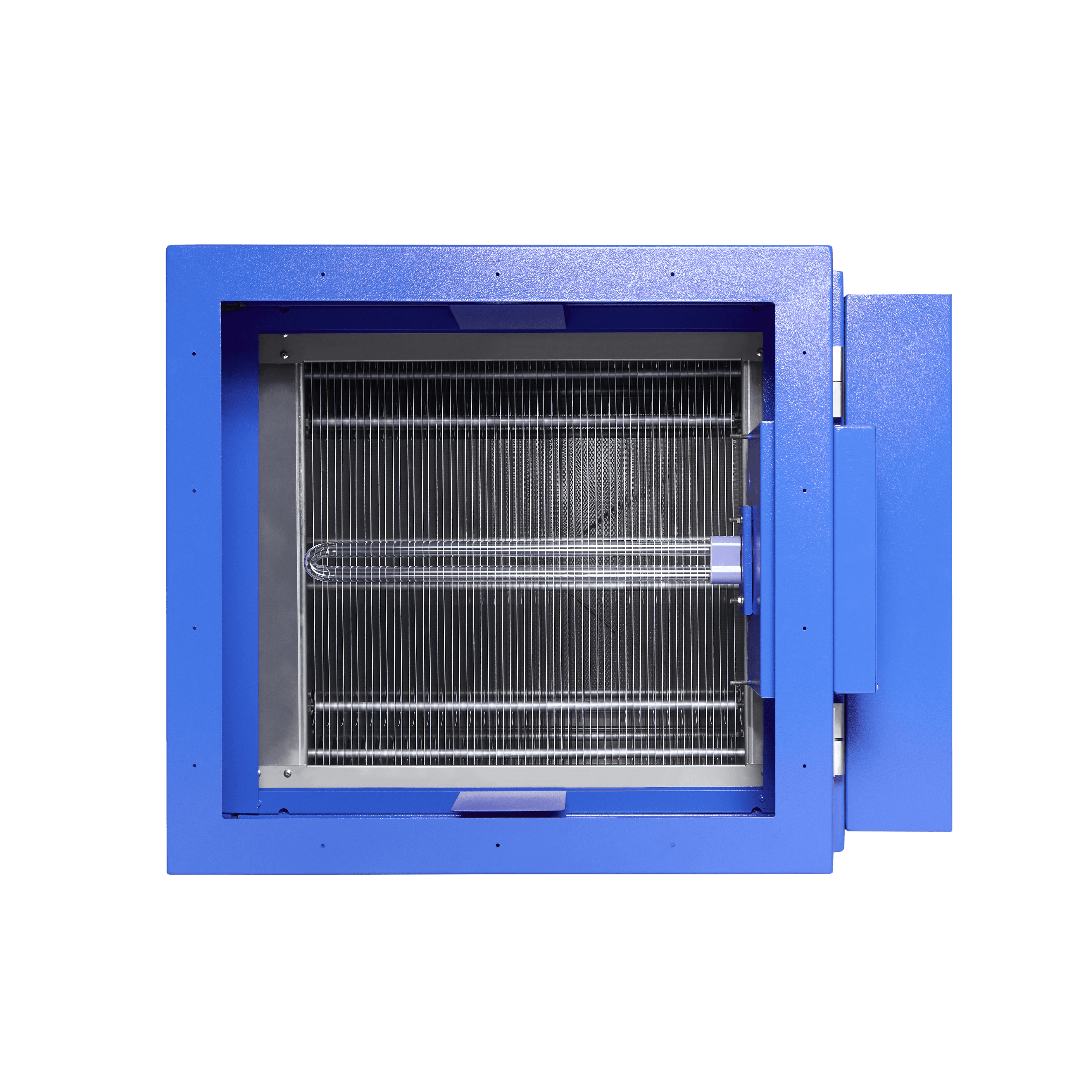

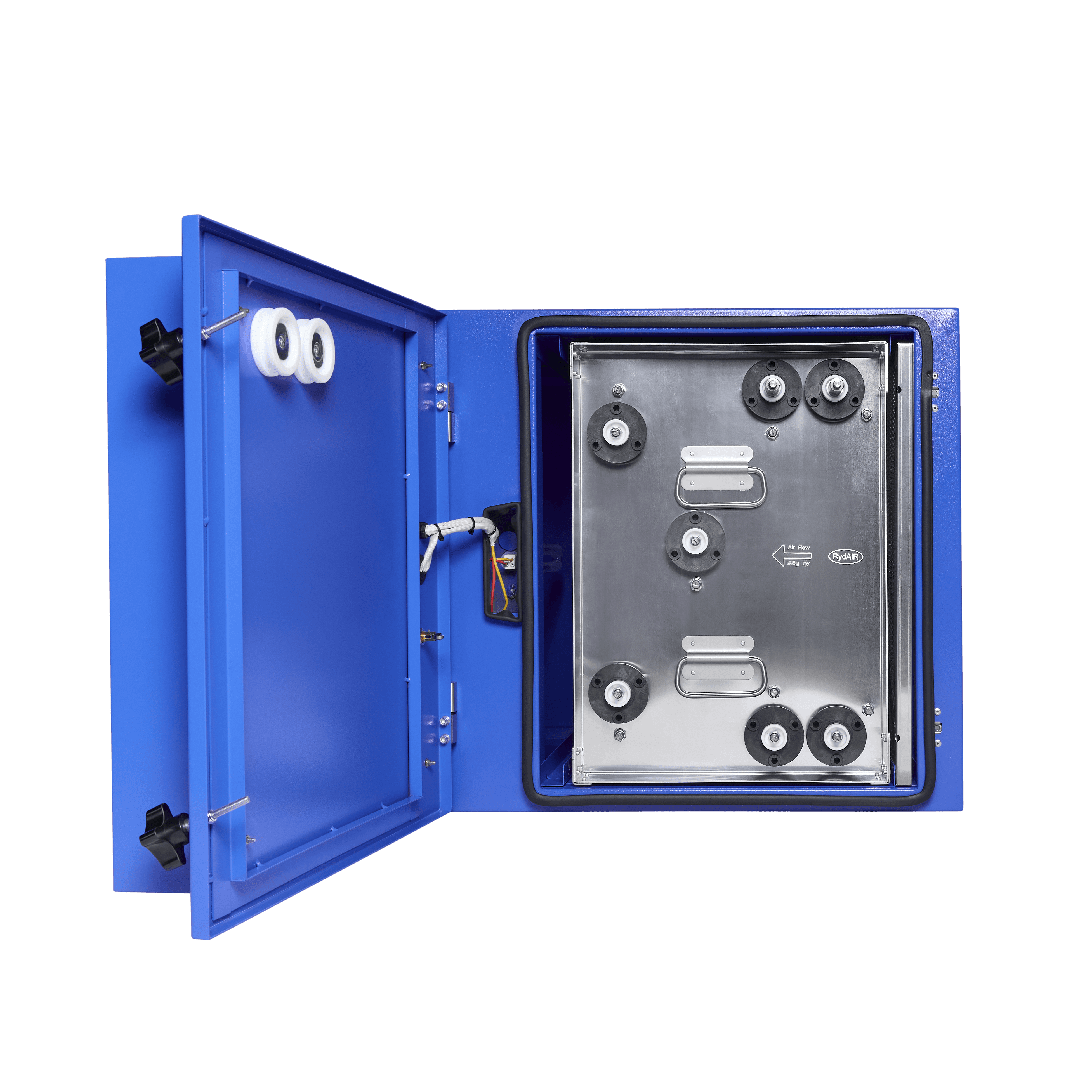

ESP Cells | 1 |
Standards / Compliance | ASHRAE 52.2 (MERV 15); DOP tested |

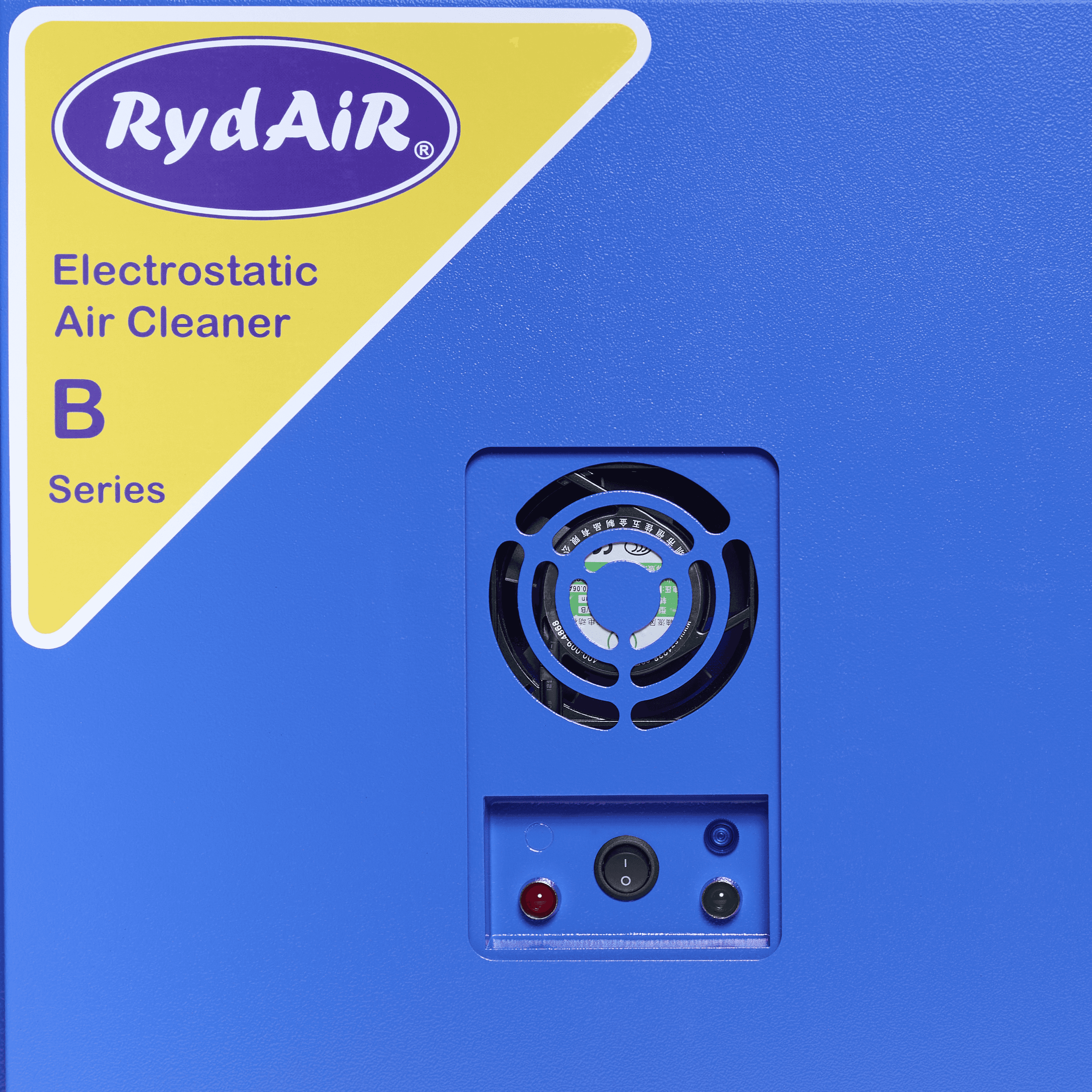

Controls / Electrical | Ionizer ~12 kVDC / collector ~6 kVDC |
Options / Upgrades | UV-ozone lamp kit; stacking frames |
Notes | Design with airflow headroom for best efficiency. |
Options/Upgrades | We do not have stacking frames |
