Recirc Systems
Recirculation Extraction Tower
Compact, high-performance recirculation filtration system designed for commercial kitchens where ducting to atmosphere is not possible. The recirculation unit uses a multi-stage filtration process to remove grease, smoke, odours and fine particulates from the cooking extract air before safely returning clean air back into the kitchen environment.
Designed for electric cooking applications, the system combines high-efficiency grease filtration, fine particulate removal and carbon odour control to meet planning and environmental requirements. With a compact footprint, low resistance airflow design and accessible service panels, the unit is engineered for reliable long-term operation in restaurants, food courts, retail kitchens and retrofit installations where external discharge is restricted or unavailable.
Trusted by Commercial & Industrial Leaders
Understanding System Performance in Real Applications
How it's works

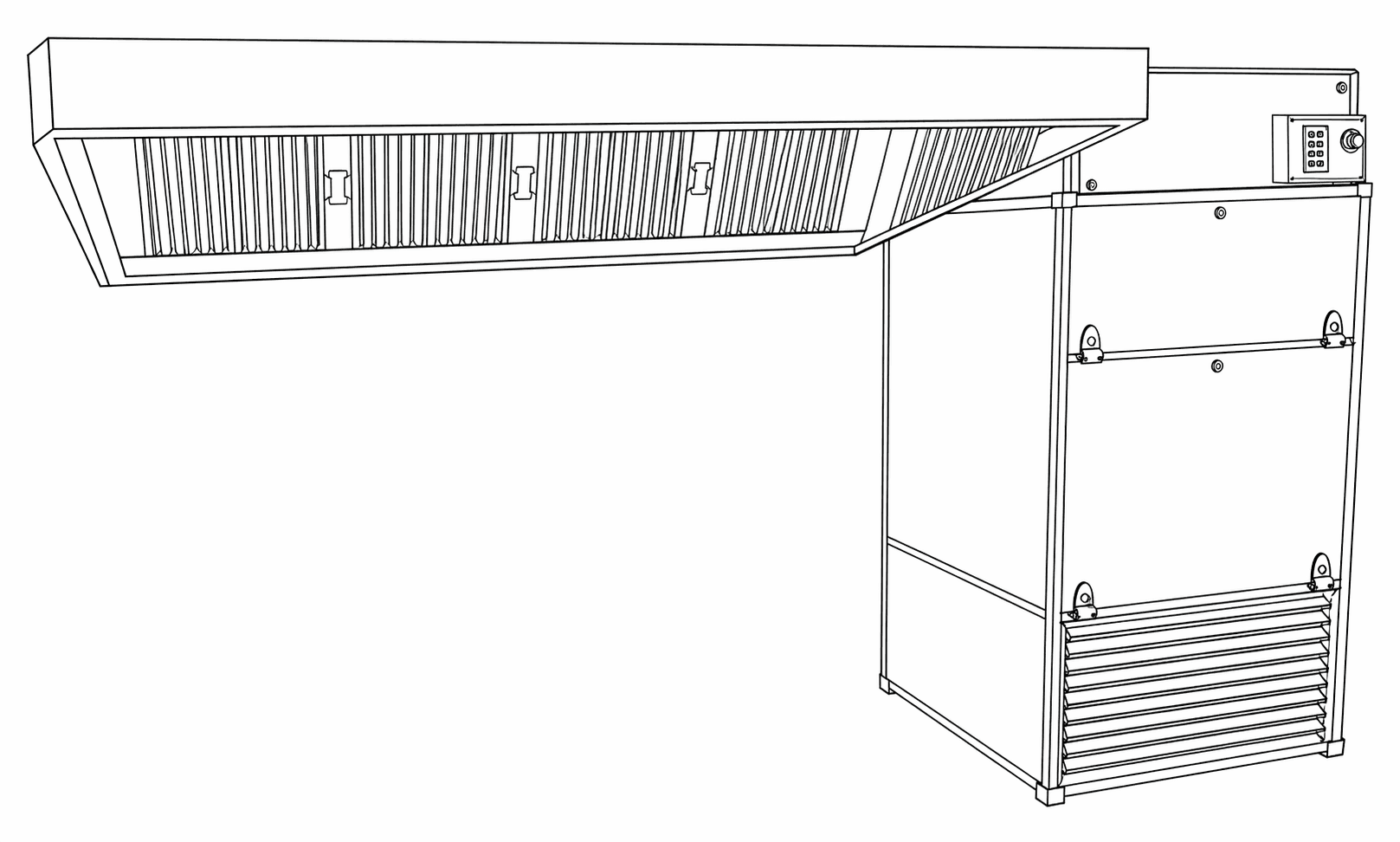

Air is drawn into the external canopy where primary grease filters capture larger particulates from the cooking process. The air then passes into the recirculation unit, moving through a multi-stage filtration system designed to progressively remove grease, fine particulates, odours and water vapour.

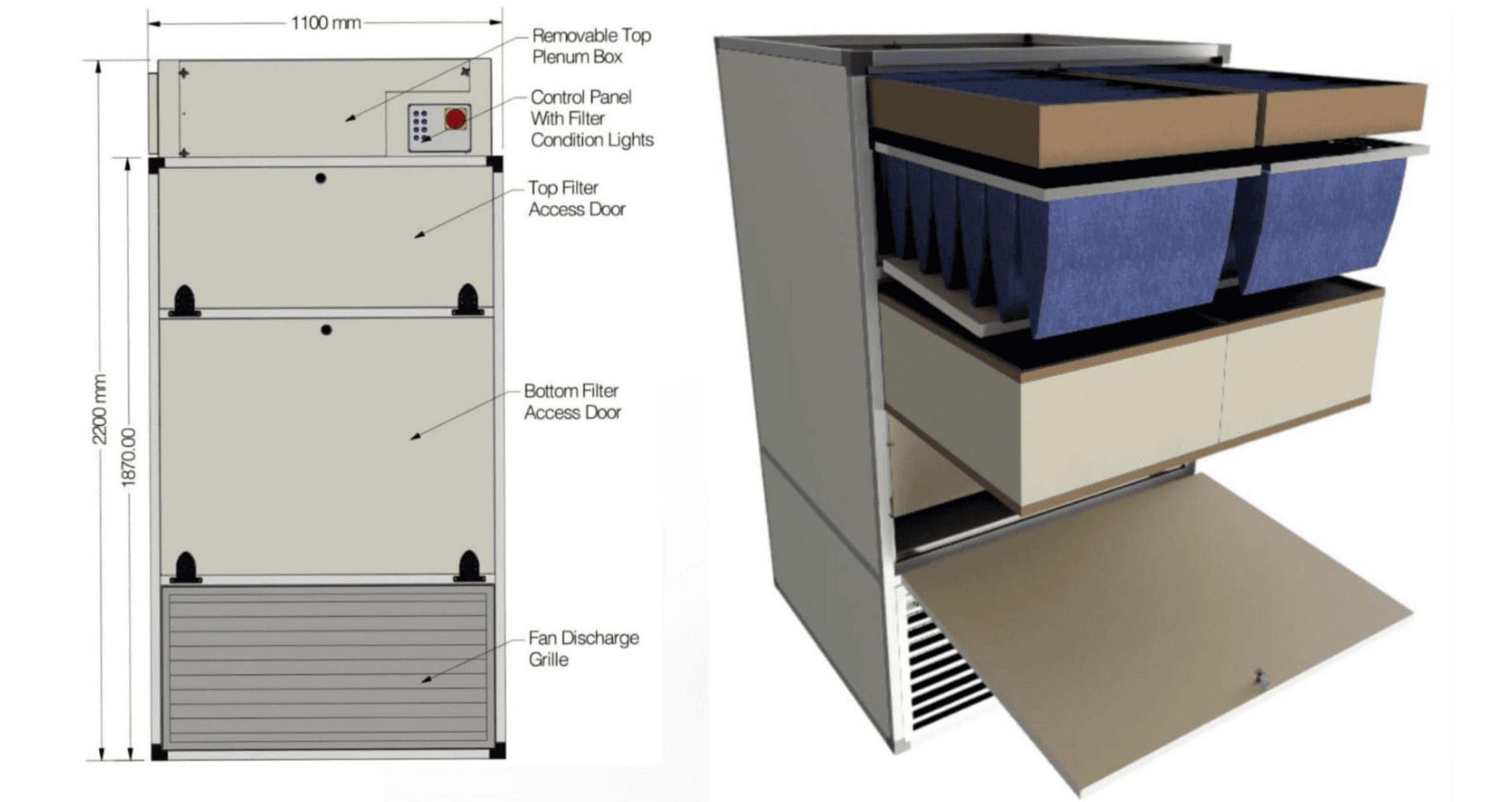

Within the unit, high-efficiency filters and odour control media treat the air before it reaches the fan section. Once fully filtered, the cleaned air is discharged back into the kitchen environment via the base grille, eliminating the need for external ductwork.
The system is engineered to maintain consistent airflow and filtration performance, ensuring effective air cleaning while operating within planning and environmental requirements for commercial kitchen applications.
Recirculation Extraction Tower
- Notes
on
Application
Designed for commercial kitchens where there is no viable route to atmosphere.
Commonly specified for basement, city centre and enclosed sites with planning restrictions.
Suitable for electric cooking applications requiring effective grease, vapour and odour control.
Ideal for both new installations and retrofit projects where external duct discharge is not possible.
