Overview

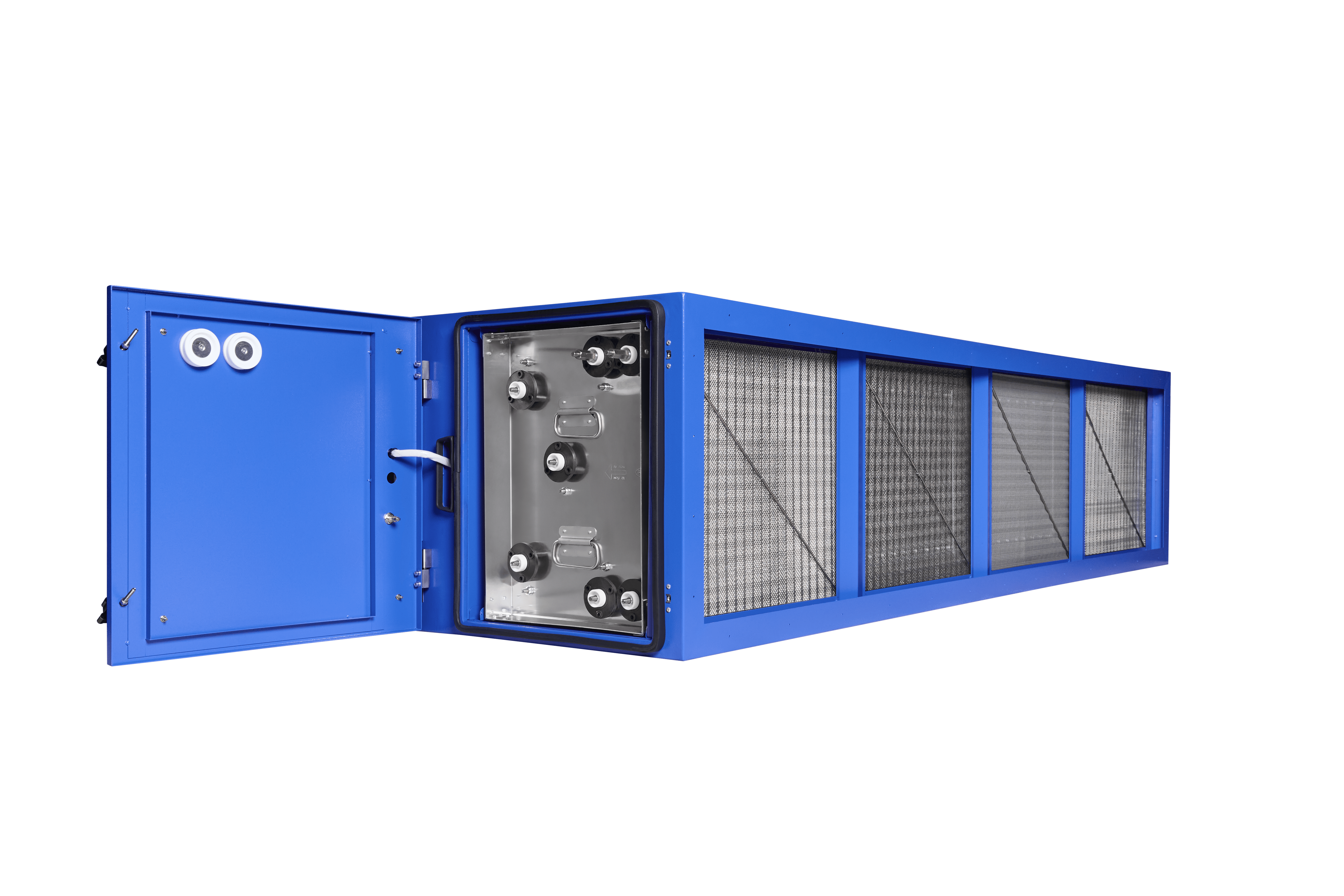

RY10000B — large-format electrostatic precipitator (ESP) for commercial kitchen extract and industrial applications.
The RY10000B captures grease, smoke and oil mist with low pressure drop using high-voltage ionisation and collection plates. Digital power packs provide status and fault indication, short-circuit/arc protection with auto-restore, and BMS terminals. Units can be banked to meet higher airflows and are supplied with washable stainless-steel pre-filters and removable collector cells.
Key Benefits
Specifications
Power | 125 Watts |
Weight | 154kg |
Model | RY10000B Electrostatic Air Cleaner (duct-mounted) |
Dimensions (H × W × L) | 540 × 2338 × 620 mm |
Weight | 165 kg |
Air volume (rated – max) | 10,000 – 18,400 CMH (running at max reduces efficiency) |
Pressure drop | ≈ 50–115 Pa (at max capacity) |
Voltage / Power | 220–240 VAC, 50/60 Hz, ~135 W |
Ionising / Collector voltages | ≈ 12–13 kVDC (HV) / 6–7 kVDC (LV) |
Pre-filters | 4 × stainless-steel mesh, washable |
Electrostatic cell size | H 472 × W 550 × L 340 mm |
No. of cells (per unit) | 4 (≈16.5 kg each) |
Airflow direction | Default: right → left; reversible |
Efficiency (indicative) | DOP up to 95% single pass / 99% double; ASHRAE 52.2 up to 96% single / 99% double |
Particle size range | ≈ 0.01–10 μm |
Controls & safety | Digital PSU with LED; short-circuit/arc protection & auto-restore; auto power cut-off when door opened; BMS terminals |
Options | UV‑ozone retrofit available on BX variant for odour control |
